Example examples/tetris

Tetris

This is a finished game in one file. Settled blocks are entities, the falling piece is an entity, and the rules are four systems that run over resources: the occupancy grid, the score, this update's controls, the gravity clock and the bag of upcoming pieces. Two events carry what happened from the rules to the effects, which play a sound and start a flash. The panel beside the board is immediate-mode interface rebuilt every frame.

The guide Building Tetris writes this program from an empty file and explains the design decisions as they are made; this page reads the finished source in order. The packages are ecs for the world, timer for gravity, tween for the flash, rng for the bag, audio for the two sounds, ui for the panel and gfx for the board.

Run it with:

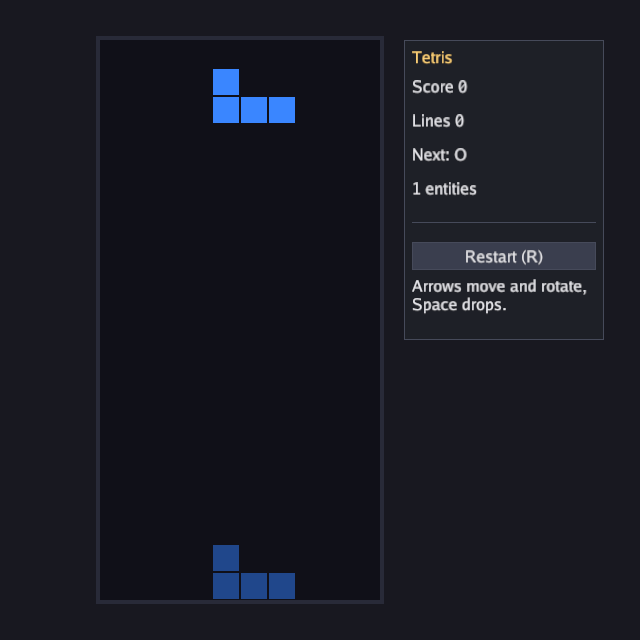

go run ./examples/tetris -seconds 3 -shot out.png

The flags are -seconds N and -shot file.png. Left and right move, Up rotates, Down soft-drops, Space hard-drops, R restarts, Escape quits.

The board and the pieces

The board is ten by twenty cells of 28 units each. The seven pieces are written as strings, one rotation each, because the game rotates them at run time rather than storing four rotations per piece. gfx.Hex takes an sRGB hex value and returns a linear colour, which is why the colours can be written the way a palette lists them.

// The board is ten cells wide and twenty tall.
const (
	cols, rows = 10, 20
	cell       = 28
)

// Piece shapes as strings, one rotation each; the game rotates them.
var shapes = []struct {
	name  string
	cells []string
	color gfx.Color
}{
	{"I", []string{"....", "####", "....", "...."}, gfx.Hex(0x5BC0EB)},
	{"O", []string{"##", "##"}, gfx.Hex(0xFDE74C)},
	{"T", []string{".#.", "###", "..."}, gfx.Hex(0x9B5DE5)},
	{"S", []string{".##", "##.", "..."}, gfx.Hex(0x9BC53D)},
	{"Z", []string{"##.", ".##", "..."}, gfx.Hex(0xE55934)},
	{"J", []string{"#..", "###", "..."}, gfx.Hex(0x3A86FF)},
	{"L", []string{"..#", "###", "..."}, gfx.Hex(0xFA7921)},
}

The I piece is written in a 4 by 4 grid and the O piece in a 2 by 2, so each rotates about a sensible centre when the square grid is turned.

Components, resources and events

The two components are the things there can be many of, or one of at a time: a settled Cell and the Falling piece.

The five resources are the singletons. Board is the occupancy grid, rebuilt each update from the cells so the rules test a plain array rather than querying. Score is what the panel shows and whether the game is over. Controls is this update's input, filled in from ctx.Input before the world runs, which is what keeps the input system a function of the world alone. Clock owns a timer scheduler and the handle of the repeating gravity timer. Bag deals pieces from a seeded source.

The two events let the rules report what happened without knowing that sound exists. Later systems can read events in the update that emitted them; they remain available until the next World.Update starts.

// Components.

// Cell is one settled block on the board.
type Cell struct{ X, Y, Kind int }

// Falling is the piece the player controls; there is one at a time.
type Falling struct {
	Kind  int
	Cells [][]bool // Cells[y][x]
	X, Y  int
}

// Resources: singletons the systems share.

// Board is the occupancy grid rebuilt from Cell entities each update.
type Board struct{ Full [rows][cols]bool }

// Score is what the panel shows.
type Score struct {
	Points, Lines int
	Over          bool
}

// Controls is this update's input, filled in from ctx.Input.
type Controls struct{ Left, Right, Rotate, Down, Drop bool }

// Clock drives gravity on game time.
type Clock struct {
	Timers timer.Scheduler
	Drop   timer.Handle
}

// Bag deals the next piece.
type Bag struct {
	Random *rng.Rand
	Next   int
}

// Events: how systems tell each other what happened.

// Locked says a piece settled without clearing lines.
type Locked struct{}

// Cleared says lines were removed.
type Cleared struct{ Rows int }

Piece geometry

newFalling turns a shape's strings into a grid of booleans and centres it at the top of the board. rotated returns a new piece turned clockwise by transposing and reversing the square grid, which is why each shape is square. fits is the one collision test the whole game uses: it rejects a piece that leaves the sides, passes the floor, or overlaps a settled cell. Rows above the top of the board are allowed, which is what lets a piece spawn partly off screen.

// newFalling builds a piece at the top of the board.
func newFalling(kind int) Falling {
	src := shapes[kind].cells
	p := Falling{Kind: kind, X: cols/2 - len(src[0])/2}
	for _, row := range src {
		var r []bool
		for _, ch := range row {
			r = append(r, ch == '#')
		}
		p.Cells = append(p.Cells, r)
	}
	return p
}

// rotated returns the piece turned clockwise.
func (p Falling) rotated() Falling {
	n := len(p.Cells)
	out := Falling{Kind: p.Kind, X: p.X, Y: p.Y, Cells: make([][]bool, n)}
	for y := range n {
		out.Cells[y] = make([]bool, n)
		for x := range n {
			out.Cells[y][x] = p.Cells[n-1-x][y]
		}
	}
	return out
}

// fits reports whether the piece overlaps walls, floor or settled cells.
func fits(b *Board, p Falling) bool {
	for y, row := range p.Cells {
		for x, on := range row {
			if !on {
				continue
			}
			bx, by := p.X+x, p.Y+y
			if bx < 0 || bx >= cols || by >= rows || (by >= 0 && b.Full[by][bx]) {
				return false
			}
		}
	}
	return true
}

The game type and Init

Two cached queries, the font, the interface context, two sounds and the flash tween.

audio.Sine(freq, seconds, rate) generates a tone at the mixer's own sample rate, which ctx.Audio.Rate() reports, so the example needs no sound files. NewSound uploads it to the mixer.

The four systems are registered in the order they must run: rebuild the board, apply input, advance gravity, then turn the resulting events into effects. Registration order is execution order, so the ordering is the whole scheduling model.

type game struct {
	seconds float64
	shot    string

	world   *ecs.World
	cells   *ecs.Query1[Cell]
	falling *ecs.Query1[Falling]

	font     *gfx.Font
	ui       *ui.Context
	lock     *audio.Sound
	clear    *audio.Sound
	flash    *tween.Tween
	shotDone bool
}

func (g *game) Init(ctx *engine.Context) error {
	var err error
	if g.font, err = ctx.Gfx.NewFont(goregular.TTF, 16, gfx.FontOptions{}); err != nil {
		return err
	}
	g.ui = ui.New(ctx.Gfx, ui.DarkTheme(g.font))
	if g.lock, err = ctx.Audio.NewSound(audio.Sine(220, 0.06, ctx.Audio.Rate())); err != nil {
		return err
	}
	if g.clear, err = ctx.Audio.NewSound(audio.Sine(660, 0.25, ctx.Audio.Rate())); err != nil {
		return err
	}
	w := ecs.NewWorld()
	g.world = w
	g.cells = w.Query1[Cell]()
	g.falling = w.Query1[Falling]()
	// Systems run in this order every update.
	w.AddSystem("board", boardSystem)
	w.AddSystem("input", inputSystem)
	w.AddSystem("gravity", gravitySystem)
	w.AddSystem("effects", g.effectsSystem(ctx.Audio))
	g.restart()
	return nil
}

func (g *game) Shutdown(ctx *engine.Context) { g.font.Destroy() }

The effects system is a method returning a closure, because it needs the mixer and the game's sounds while still having the plain func(*ecs.World, float64) shape a system must have.

Restarting and spawning

restart despawns everything and resets every resource, so one function covers both the first game and a later restart. The gravity timer is registered with Every(0.6, ...), which repeats until the scheduler is dropped, and calls drop on the world.

spawnPiece deals the next piece, refills Next, and sets the game over flag if the new piece does not fit, which is the losing condition. The piece is spawned either way, so the board keeps rendering.

// restart clears the board and deals the first piece.
func (g *game) restart() {
	w := g.world
	for _, e := range w.Entities() {
		w.Despawn(e)
	}
	w.SetResource(Board{})
	w.SetResource(Score{})
	w.SetResource(Controls{})
	bag := Bag{Random: rng.New(7)}
	bag.Next = bag.Random.Intn(len(shapes))
	w.SetResource(bag)
	var clock Clock
	clock.Drop = clock.Timers.Every(0.6, func() { drop(w) })
	w.SetResource(clock)
	spawnPiece(w)
}

// spawnPiece deals the next piece; if it cannot be placed the game is over.
func spawnPiece(w *ecs.World) {
	bag := w.Resource[Bag]()
	p := newFalling(bag.Next)
	bag.Next = bag.Random.Intn(len(shapes))
	if !fits(w.Resource[Board](), p) {
		w.Resource[Score]().Over = true
	}
	w.SpawnWith(p)
}

w.Resource[T]() returns a pointer to the resource, so writing through it updates the world's copy.

The board and input systems

boardSystem clears the grid and walks every Cell entity with ecs.World.Each, which is the query-free form for a single component type. Cells above the top of the board are skipped, since the array has no row for them.

inputSystem reads the Controls resource and the one falling piece. Query1.First() returns the entity, a pointer to its component, and whether there was one. Every move goes through try, which applies the candidate only if it fits, so the rules are one test in one place.

The rotation is a wall kick: the rotated piece is offered at five horizontal offsets in turn, so a piece against a wall rotates by stepping away from it instead of refusing.

The hard drop moves down until the move fails, then locks immediately.

// boardSystem rebuilds the occupancy grid from the Cell entities, so the
// other systems test collisions against a plain array.
func boardSystem(w *ecs.World, dt float64) {
	b := w.Resource[Board]()
	b.Full = [rows][cols]bool{}
	w.Each(func(e ecs.Entity, c *Cell) {
		if c.Y >= 0 {
			b.Full[c.Y][c.X] = true
		}
	})
}

// try moves the piece to the candidate if it fits.
func try(w *ecs.World, p *Falling, candidate Falling) bool {
	if !fits(w.Resource[Board](), candidate) {
		return false
	}
	*p = candidate
	return true
}

// inputSystem applies the Controls resource to the falling piece.
func inputSystem(w *ecs.World, dt float64) {
	if w.Resource[Score]().Over {
		return
	}
	in := w.Resource[Controls]()
	_, p, ok := w.Query1[Falling]().First()
	if !ok {
		return
	}
	if in.Left {
		c := *p
		c.X--
		try(w, p, c)
	}
	if in.Right {
		c := *p
		c.X++
		try(w, p, c)
	}
	if in.Rotate {
		r := p.rotated()
		// Wall kick: nudge sideways when the rotation would clip a wall.
		for _, dx := range []int{0, -1, 1, -2, 2} {
			r.X = p.X + dx
			if try(w, p, r) {
				break
			}
		}
	}
	if in.Down {
		drop(w)
	}
	if in.Drop {
		for {
			c := *p
			c.Y++
			if !try(w, p, c) {
				break
			}
		}
		lockPiece(w)
	}
}

Gravity and locking

gravitySystem does nothing but advance the scheduler, which calls drop when the interval elapses. Running the timer on dt rather than on wall-clock time means gravity stops when the game does.

lockPiece is the heart of the rules. The falling piece becomes Cell entities, the piece entity is despawned, and the board is rebuilt at once rather than waiting for the next update, because the line check that follows needs it. Full rows are removed and everything above falls one row, inside a single ecs.World.Each walk: despawning the visited entity is safe, because a query walks its rows last to first. y++ after a clear re-checks the row that has just dropped into the same slot.

Finally an event is emitted saying what happened, and the next piece is dealt.

// gravitySystem advances the clock; its timer calls drop.
func gravitySystem(w *ecs.World, dt float64) {
	if w.Resource[Score]().Over {
		return
	}
	w.Resource[Clock]().Timers.Update(dt)
}

// drop moves the piece down one row, or locks it when it cannot fall.
func drop(w *ecs.World) {
	_, p, ok := w.Query1[Falling]().First()
	if !ok {
		return
	}
	c := *p
	c.Y++
	if !try(w, p, c) {
		lockPiece(w)
	}
}

// lockPiece turns the falling piece into Cell entities, clears full
// lines and emits an event saying what happened.
func lockPiece(w *ecs.World) {
	e, p, ok := w.Query1[Falling]().First()
	if !ok {
		return
	}
	for y, row := range p.Cells {
		for x, on := range row {
			if on && p.Y+y >= 0 {
				w.SpawnWith(Cell{X: p.X + x, Y: p.Y + y, Kind: p.Kind})
			}
		}
	}
	w.Despawn(e)
	boardSystem(w, 0)
	b := w.Resource[Board]()
	cleared := 0
	for y := rows - 1; y >= 0; y-- {
		full := true
		for x := range cols {
			full = full && b.Full[y][x]
		}
		if !full {
			continue
		}
		// Despawn this row's cells and let everything above fall one row.
		// Despawning the visited entity inside a query is safe.
		w.Each(func(e ecs.Entity, c *Cell) {
			switch {
			case c.Y == y:
				w.Despawn(e)
			case c.Y < y:
				c.Y++
			}
		})
		boardSystem(w, 0)
		cleared++
		y++ // re-check the row that just fell into this slot
	}
	if cleared > 0 {
		s := w.Resource[Score]()
		s.Lines += cleared
		s.Points += []int{0, 100, 300, 500, 800}[cleared]
		w.Emit(Cleared{Rows: cleared})
	} else {
		w.Emit(Locked{})
	}
	spawnPiece(w)
}

Effects

The effects system reads both event types with w.Events[T]() and turns them into sound and a flash. A cleared line raises the pitch by the number of rows, so a four-line clear sounds different from a single. The flash is a tween from 1 to 0 over 0.4 seconds, advanced here and read in Draw, and set to nil when it finishes.

Because the events are the only link, the rules above know nothing about audio: the sound could be removed by dropping this system.

// effectsSystem turns events into sound and the line-clear flash.
func (g *game) effectsSystem(mixer *audio.Mixer) ecs.System {
	return func(w *ecs.World, dt float64) {
		for range w.Events[Locked]() {
			mixer.Play(g.lock, audio.PlayOptions{Volume: 0.4})
		}
		for _, ev := range w.Events[Cleared]() {
			mixer.Play(g.clear, audio.PlayOptions{Volume: 0.5, Pitch: 1 + 0.2*float32(ev.Rows)})
			g.flash = tween.New(1, 0, 0.4, tween.OutQuad)
		}
		if g.flash != nil {
			if g.flash.Update(float32(dt)); g.flash.Done() {
				g.flash = nil
			}
		}
	}
}

Update: input into a resource

Update collects the frame's key edges into the Controls resource and then runs the world once. Writing input into a resource rather than reading ctx.Input from inside the systems is what makes the rules testable without a window: a test sets Controls and calls world.Update.

Every control uses KeyPressed, including Down. OS repeat events count as presses, so held keys repeat at the platform's configured rate. A game wanting its own repeat timing can exclude KeyRepeated and use a timer.

func (g *game) Update(ctx *engine.Context) error {
	in := ctx.Input
	if in.KeyPressed(input.KeyEscape) || (g.seconds > 0 && ctx.Time >= g.seconds) {
		ctx.Quit()
	}
	if g.shot != "" && !g.shotDone && (g.seconds == 0 || ctx.Time >= g.seconds/2) {
		ctx.Screenshot(g.shot)
		g.shotDone = true
	}
	if in.KeyPressed(input.KeyR) {
		g.restart()
	}
	// Input becomes a resource so the input system stays a pure function
	// of the world.
	*g.world.Resource[Controls]() = Controls{
		Left: in.KeyPressed(input.KeyLeft), Right: in.KeyPressed(input.KeyRight), Rotate: in.KeyPressed(input.KeyUp),
		Down: in.KeyPressed(input.KeyDown), Drop: in.KeyPressed(input.KeySpace),
	}
	g.world.Update(ctx.Delta)
	return nil
}

Draw: the board, the ghost and the panel

The board is centred with an offset, drawn as a border rectangle and a darker field. drawCell is a closure over that offset so every cell is one call, and it takes an alpha, which is what makes the ghost possible.

The ghost is the piece copied and dropped until it no longer fits, then backed up one row, drawn at a quarter alpha. The two layers are drawn from a table so the same nested loop covers both.

The flash is a white rectangle over the board whose alpha comes from the tween.

The panel is rebuilt inside u.Begin(ctx.Input, ...) and u.Panel(title, rect, ...), both of which take closures; there is no call to end them. u.Button reports a mouse release inside the button after a press, or keyboard activation, which is the immediate-mode pattern: the widget's identity comes from its label, its container and the call order, and its result is a return value rather than a callback.

func (g *game) Draw(ctx *engine.Context) error {
	gr := ctx.Gfx
	w := g.world
	ox, oy := (ctx.Width-cols*cell)/2-80, (ctx.Height-rows*cell)/2
	gr.FillRect(ox-4, oy-4, cols*cell+8, rows*cell+8, gfx.RGB(40, 42, 56))
	gr.FillRect(ox, oy, cols*cell, rows*cell, gfx.RGB(16, 16, 24))
	drawCell := func(x, y, kind int, alpha float32) {
		c := shapes[kind].color
		c.A = alpha
		gr.FillRect(ox+float32(x*cell)+1, oy+float32(y*cell)+1, cell-2, cell-2, c)
	}
	g.cells.Each(func(e ecs.Entity, c *Cell) {
		if c.Y >= 0 {
			drawCell(c.X, c.Y, c.Kind, 1)
		}
	})
	if _, p, ok := g.falling.First(); ok {
		// The ghost shows where the piece will land.
		ghost := *p
		for fits(w.Resource[Board](), ghost) {
			ghost.Y++
		}
		ghost.Y--
		for _, layer := range []struct {
			piece Falling
			alpha float32
		}{{ghost, 0.25}, {*p, 1}} {
			for y, row := range layer.piece.Cells {
				for x, on := range row {
					if on && layer.piece.Y+y >= 0 {
						drawCell(layer.piece.X+x, layer.piece.Y+y, layer.piece.Kind, layer.alpha)
					}
				}
			}
		}
	}
	if g.flash != nil {
		gr.FillRect(ox, oy, cols*cell, rows*cell, gfx.Color{R: 1, G: 1, B: 1, A: 0.35 * g.flash.Value()})
	}
	score := w.Resource[Score]()
	u := g.ui
	u.Begin(ctx.Input, func() {
		u.Panel("Tetris", ui.Rect{X: ox + cols*cell + 24, Y: oy, W: 200, H: 300}, func() {
			u.Label(fmt.Sprintf("Score %d", score.Points))
			u.Label(fmt.Sprintf("Lines %d", score.Lines))
			u.Label("Next: " + shapes[w.Resource[Bag]().Next].name)
			u.Label(fmt.Sprintf("%d entities", w.Len()))
			u.Separator()
			if score.Over {
				u.Label("Game over")
			}
			if u.Button("Restart (R)") {
				g.restart()
			}
			u.Label("Arrows move and rotate, Space drops.")
		})
	})
	return nil
}

Building the interface in Draw rather than in Update is correct: key and mouse edges are latched for the whole frame while Draw runs, so a button sees every click even on a frame with no update.

main

func main() {
	seconds := flag.Float64("seconds", 0, "exit after this many seconds")
	shot := flag.String("shot", "", "write a screenshot to this PNG")
	flag.Parse()
	err := engine.Run(engine.Config{Title: "Bunyip Tetris", Width: 640, Height: 640},
		&game{seconds: *seconds, shot: *shot})
	if err != nil {
		fmt.Fprintln(os.Stderr, "tetris:", err)
		os.Exit(1)
	}
}

What to try

• Make gravity speed up with the level: keep the interval in Clock, and in effectsSystem cancel and re-register the timer with a shorter one as lines are cleared.
• Add a hold slot: a new resource, a key in Update, and a swap in inputSystem.
• Deal pieces from a shuffled bag of seven rather than at random, by giving Bag a slice and refilling it in spawnPiece.
• Emit a third event for a hard drop in inputSystem and give it its own sound in effectsSystem.
• Draw the next piece in the panel in Draw instead of naming it, using newFalling(w.Resource[Bag]().Next) and the same drawCell closure with a different offset.

Source files

main.go

The whole directory on GitHub
