Example examples/pathfinding
Pathfinding

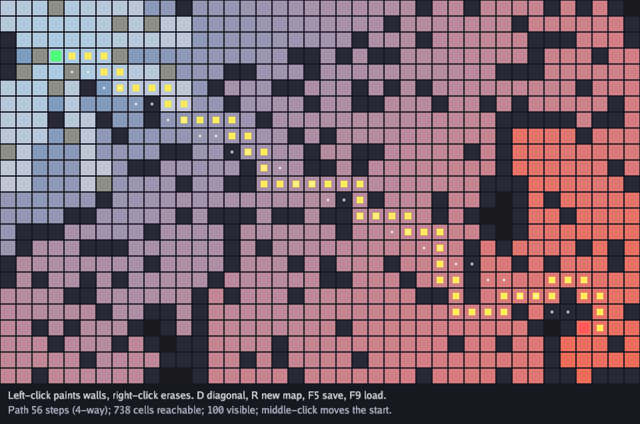

This program puts five of the grid package's algorithms on one screen at once. Walls are painted with the mouse; A* routes from the start to the cell under the pointer; a Dijkstra map shades every reachable cell by its distance from the start; field of view brightens what the start can see; a flood fill counts the connected region; and a Bresenham line is drawn from the start to the goal. D switches between four-way and eight-way movement and R rolls a new map.
The map is saved and loaded through save, and the random scattering comes from rng, seeded so every run produces the same map. Both are covered by the game services guide.
Everything is recomputed from scratch every frame, which is honest for a
grid of 40 by 24 and wrong for a large map. The package's doc comments
say what to keep instead: a grid.Pathfinder for repeated searches and a
grid.Vision for repeated casts. Retained scratch avoids allocations
once its buffers have grown large enough for the work.
Run it:
go run ./examples/pathfinding -seconds 3 -shot out.png
The flags are -seconds N and -shot file.png. A left click paints a
wall, a right click erases one, a middle click moves the start, D toggles
diagonal moves, R rolls a new map, F5 saves and F9 loads.
Package, constants and state
The map is 40 by 24 cells of 24 view units each, which fixes the window
size in main. mapFile is the shape written to disk: a version number
so a later format can be recognised, the wall cells, and the start.
The grid itself is *grid.Grid[bool], a dense two-dimensional slice with
bounds checking. grid.Point is an integer cell coordinate, which is a
different thing from the float view units the drawing uses.
// Command pathfinding shows the grid package: paint walls with the left
// mouse button (right erases), and watch A* route from the start to the
// cell under the pointer, a Dijkstra map colour every reachable cell by
// distance, field of view light what the start can see, and flood fill
// count the connected region. D toggles diagonal moves, R rolls a new
// random map, F5 saves the map and F9 loads it (through the save package).
package main
import (
"flag"
"fmt"
"math"
"os"
"golang.org/x/image/font/gofont/goregular"
"github.com/matjam/bunyip/engine"
"github.com/matjam/bunyip/gfx"
"github.com/matjam/bunyip/grid"
"github.com/matjam/bunyip/input"
"github.com/matjam/bunyip/rng"
"github.com/matjam/bunyip/save"
)
const (
cols, rows = 40, 24
cell = 24
)
type mapFile struct {
Version int
Walls []bool
Start grid.Point
}
type game struct {
seconds float64
shot string
font *gfx.Font
walls *grid.Grid[bool]
start grid.Point
diagonal bool
random *rng.Rand
store *save.Store
status string
shotDone bool
}
Init: the store and the first map
save.Open returns a store rooted in the operating system's own place
for a game's saved data, named for the string it is given.
rng.New(42) seeds a generator explicitly, so the map is the same on
every run and a screenshot of it is reproducible; a game that wants a
different world each time seeds from the clock instead.
func (g *game) Init(ctx *engine.Context) error {
var err error
if g.font, err = ctx.Gfx.NewFont(goregular.TTF, 15, gfx.FontOptions{}); err != nil {
return err
}
if g.store, err = save.Open("bunyip-pathfinding"); err != nil {
return err
}
g.random = rng.New(42)
g.walls = grid.New[bool](cols, rows)
g.start = grid.Point{X: 3, Y: 3}
g.roll()
g.status = "Left-click paints walls, right-click erases. D diagonal, R new map, F5 save, F9 load."
return nil
}
func (g *game) Shutdown(ctx *engine.Context) { g.font.Destroy() }
roll scatters single walls with an 18 percent chance each and then
draws six longer barriers, one cell at a time in a random direction, to
make dead ends the search has to work around. Set outside the grid is
ignored, so the barrier loop does not have to check the edges. The last
line clears the start cell so it represents walkable terrain. The cost
callback only rejects blocked destinations, so the search itself would
still allow a step out of a blocked start.
// roll scatters walls and a few longer barriers.
func (g *game) roll() {
g.walls.Fill(false)
for y := range rows {
for x := range cols {
g.walls.Set(x, y, g.random.Chance(0.18))
}
}
for range 6 {
x, y := g.random.Intn(cols), g.random.Intn(rows)
for i := range 8 {
if g.random.Chance(0.5) {
g.walls.Set(x+i, y, true)
} else {
g.walls.Set(x, y+i, true)
}
}
}
g.walls.Set(g.start.X, g.start.Y, false)
}
The cost function
Every search takes a grid.Cost, a function from one cell to a
neighbour. Returning grid.Blocked, which is positive infinity, marks a
move as impossible; that is how walls reach the search, rather than the
search knowing about the wall grid. A diagonal step costs the square root
of two so that eight-way paths measure true distance instead of counting
diagonal moves as cheap.
func (g *game) cost(from, to grid.Point) float32 {
if g.walls.At(to.X, to.Y) {
return grid.Blocked
}
if from.X != to.X && from.Y != to.Y {
return math.Sqrt2
}
return 1
}
Update: painting and saving
Update runs at the fixed step. The mouse position comes back in view
units, and integer division by the cell size turns it into a cell. Walls
are painted while the button is held rather than on the press edge, so
dragging paints a line, which is why the test is MouseDown rather than
MousePressed.
store.Write encodes the value and writes it atomically under the name
given; store.Read decodes it back. The length check after a load is the
minimum a save format needs: a file written when the map was a different
size is ignored rather than trusted.
func (g *game) Update(ctx *engine.Context) error {
in := ctx.Input
if in.KeyPressed(input.KeyEscape) || (g.seconds > 0 && ctx.Time >= g.seconds) {
ctx.Quit()
}
if g.shot != "" && !g.shotDone && (g.seconds == 0 || ctx.Time >= g.seconds/2) {
ctx.Screenshot(g.shot)
g.shotDone = true
}
if in.KeyPressed(input.KeyD) {
g.diagonal = !g.diagonal
}
if in.KeyPressed(input.KeyR) {
g.roll()
}
if in.KeyPressed(input.KeyF5) {
if err := g.store.Write("map", mapFile{Version: 1, Walls: g.walls.Cells, Start: g.start}); err != nil {
g.status = err.Error()
} else {
g.status = "Saved to " + g.store.Path()
}
}
if in.KeyPressed(input.KeyF9) {
var m mapFile
if err := g.store.Read("map", &m); err != nil {
g.status = "Load failed: " + err.Error()
} else if len(m.Walls) == len(g.walls.Cells) {
copy(g.walls.Cells, m.Walls)
g.start = m.Start
g.status = "Loaded the saved map"
}
}
mx, my := in.Mouse()
p := grid.Point{X: int(mx) / cell, Y: int(my) / cell}
if g.walls.In(p.X, p.Y) && p != g.start {
if in.MouseDown(input.MouseLeft) {
g.walls.Set(p.X, p.Y, true)
}
if in.MouseDown(input.MouseRight) {
g.walls.Set(p.X, p.Y, false)
}
}
if in.MouseDown(input.MouseMiddle) && g.walls.In(p.X, p.Y) && !g.walls.At(p.X, p.Y) {
g.start = p
}
return nil
}
Draw: running the queries
A timed run pins the goal to a fixed cell so the screenshot shows a path rather than whatever the pointer happened to be over.
grid.Dijkstra floods out from a list of sources and returns the cost to
reach every cell, with grid.Blocked where there is none.
grid.FloodFill returns the cells connected to the start under a
passability test. grid.FOV casts shadows from the start out to a radius
of nine and calls the visit function for every cell it can see; its
opaque function is asked about cells off the map as well, which is why
it treats out of bounds as blocking sight. The loop over the distance map
finds the farthest cost, which the colours are scaled against.
func (g *game) Draw(ctx *engine.Context) error {
gr := ctx.Gfx
mx, my := ctx.Input.Mouse()
goal := grid.Point{X: int(mx) / cell, Y: int(my) / cell}
if g.seconds > 0 { // a fixed goal makes screenshots meaningful
goal = grid.Point{X: cols - 4, Y: rows - 4}
}
dist := grid.Dijkstra(cols, rows, []grid.Point{g.start}, g.diagonal, g.cost)
region := grid.FloodFill(cols, rows, g.start, func(p grid.Point) bool { return !g.walls.At(p.X, p.Y) })
visible := map[grid.Point]bool{}
grid.FOV(g.start, 9, func(p grid.Point) bool { return !g.walls.In(p.X, p.Y) || g.walls.At(p.X, p.Y) }, func(p grid.Point) { visible[p] = true })
var far float32 = 1
dist.Each(func(x, y int, d float32) {
if d != grid.Blocked {
far = max(far, d)
}
})
Draw: the cells and the path
Each cell is a filled rectangle, inset by a unit so the grid lines show
as gaps. Walls and unreachable cells are flat colours; a reachable cell
mixes a colour from its distance, and a visible cell is brightened.
gfx.Color here is written out directly rather than through gfx.RGB,
because the components are computed rather than sampled from an image:
the fields are linear values from zero to one, which is what the
renderer works in, while gfx.RGB converts from sRGB bytes.
grid.AStarWithMinCost returns the path including both endpoints, or nil
when there is none. Its last argument is the smallest cost any step can
have. A straight step here costs 1 and a diagonal step costs √2, so the
bound is 1, and the search heads for the goal instead of spreading out
in every direction as grid.AStar does without a bound. If cheaper
terrain is added, lower the bound to its step cost; pass zero when the
minimum is unknown or zero-cost moves exist. grid.Line returns the cells a straight line passes through,
which a game uses for a thrown weapon or a line of sight check.
gfx.RGBA takes an alpha byte, so the line is drawn translucent over the
cells.
// Cells: walls dark, reachable cells shaded by distance, visible cells brighter.
g.walls.Each(func(x, y int, wall bool) {
var c gfx.Color
switch {
case wall:
c = gfx.RGB(40, 40, 55)
case dist.At(x, y) == grid.Blocked:
c = gfx.RGB(25, 25, 30)
default:
t := dist.At(x, y) / far
c = gfx.Color{R: 0.15 + 0.7*t, G: 0.35 - 0.2*t, B: 0.55 - 0.45*t, A: 1}
}
if visible[grid.Point{X: x, Y: y}] {
c.R, c.G, c.B = min(1, c.R+0.25), min(1, c.G+0.25), min(1, c.B+0.2)
}
gr.FillRect(float32(x*cell)+1, float32(y*cell)+1, cell-2, cell-2, c)
})
// Every step costs at least 1 (a diagonal costs √2), so 1 guides the search.
path := grid.AStarWithMinCost(cols, rows, g.start, goal, g.diagonal, g.cost, 1)
for _, p := range path {
gr.FillRect(float32(p.X*cell)+7, float32(p.Y*cell)+7, cell-14, cell-14, gfx.RGB(255, 235, 90))
}
for _, p := range grid.Line(g.start, goal) {
gr.FillRect(float32(p.X*cell)+10, float32(p.Y*cell)+10, 4, 4, gfx.RGBA(255, 255, 255, 120))
}
gr.FillRect(float32(g.start.X*cell)+4, float32(g.start.Y*cell)+4, cell-8, cell-8, gfx.RGB(80, 255, 120))
gr.FillRect(float32(goal.X*cell)+4, float32(goal.Y*cell)+4, cell-8, cell-8, gfx.RGB(255, 90, 90))
Draw: the status lines
The two lines under the grid report what the searches found. The path length is one less than the number of cells, because both endpoints are included, and it is clamped at zero for the frame where there is no path at all.
y := float32(rows*cell) + 8
gr.DrawText(g.font, g.status, 12, y, gfx.RGB(220, 220, 230))
summary := fmt.Sprintf("Path %d steps (%s); %d cells reachable; %d visible; middle-click moves the start.",
max(len(path)-1, 0), map[bool]string{true: "8-way", false: "4-way"}[g.diagonal], len(region), len(visible))
if path == nil {
summary = "No path to the goal. " + summary
}
gr.DrawText(g.font, summary, 12, y+22, gfx.RGB(180, 180, 200))
return nil
}
main
The window is exactly the grid plus 60 units for the status lines. It is
not resizable, which is the zero value of Resizable.
func main() {
seconds := flag.Float64("seconds", 0, "exit after this many seconds")
shot := flag.String("shot", "", "write a screenshot to this PNG")
flag.Parse()
err := engine.Run(engine.Config{Title: "Bunyip pathfinding", Width: cols * cell, Height: rows*cell + 60},
&game{seconds: *seconds, shot: *shot})
if err != nil {
fmt.Fprintln(os.Stderr, "pathfinding:", err)
os.Exit(1)
}
}
What to try
- Give
costa third terrain that costs 3 instead of 1 and watch A* route around it while the Dijkstra shading shows why. - Raise the field of view radius in
Drawand see the shadowcasting cost nothing noticeable at this size. - Keep a
grid.Pathfinderon the game type, set itsMinCostto 1 once, and call itsAStarmethod fromDrawinstead of the package function, which is what a game with many actors does. - Replace the call with
grid.AStarand compare the time: without a minimum step cost the search is uninformed and visits far more cells. Both find a path of the same cost, though where several paths tie they may draw a different one. - Move the searches into
Updateand keep their results on the game, so they run at the fixed step rather than once per frame. - Add a
Versioncheck to the load inUpdateand refuse a file from a future version.
