Example examples/audio
Audio

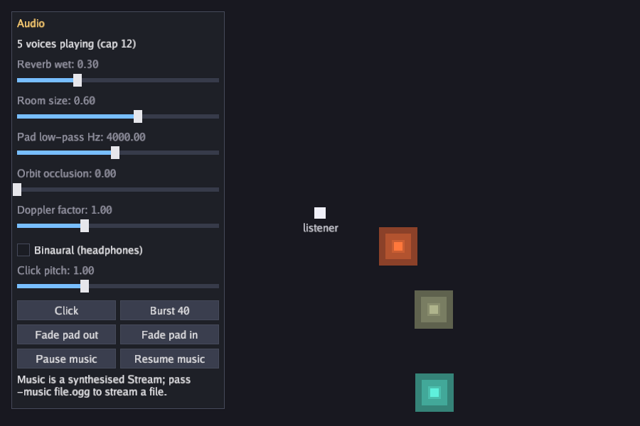

This program is a tour of the audio mixer. Three
sine sources orbit a listener in the middle of the window, panning and
fading with distance and shifting in pitch from their own velocity. A
looping pad runs through a low-pass filter and a shared reverb, both on
sliders. Buttons fade the pad, pause the music, play a click at a chosen
pitch, and fire forty voices at once into a deliberately small voice cap
so the mixer has to steal. A checkbox swaps the pan law for the binaural
head model, and -mic records from the default microphone and draws a
level meter.
Music is played as a stream: with -music it opens an Ogg, MP3 or WAV
file (WAV is decoded in full at open), and without one it plays an
arpeggio this program synthesises a buffer at a time. That is the same
interface a game uses for procedural music or its own decoder.
Sounds are values loaded once and played many times; a Voice is one
playing instance and is what the fades, filters and positions act on.
The audio guide covers the model, buses and the
tracker player. Positions here are in 2D view units, because the program
calls SetListener2D and gives the sources positions on the screen; the
mixer works in 3D and treats Z as zero.
Run it:
go run ./examples/audio -seconds 3 -shot out.png
The flags are -seconds N and -shot file.png, -music file.ogg to
stream a file instead of the synthesised arpeggio, -zone to put a
reverb zone over the left half of the window and move the listener with
the mouse, and -mic to record from the microphone.
Package and state
source is one orbiting voice with the numbers that place it. The game
also keeps the slider values, because a slider edits a Go value and the
program then pushes it into the mixer, and the capture state, which is
only used when -mic is given.
// Command audio is the sound tour: positional voices orbiting the
// listener with Doppler and occlusion on sliders, panning or the
// binaural head model on a checkbox, a shared reverb and a low-pass
// filter on sliders, fades, pitch, voice priorities under a small voice
// cap, a synthesised music stream, -music to stream an Ogg, MP3 or WAV
// file from disk, -zone to put a reverb zone at the listener so the room
// changes as the orbiting sources pass through it, and -mic to record
// from the microphone and draw a level meter.
package main
import (
"flag"
"fmt"
"math"
"os"
"golang.org/x/image/font/gofont/goregular"
"github.com/matjam/bunyip/audio"
"github.com/matjam/bunyip/engine"
"github.com/matjam/bunyip/gfx"
"github.com/matjam/bunyip/input"
"github.com/matjam/bunyip/lin"
"github.com/matjam/bunyip/ui"
)
type source struct {
voice *audio.Voice
color gfx.Color
speed float32
dist float32
pos lin.Vec3
}
type game struct {
seconds float64
shot string
musicPath string
zone bool
mic bool
font *gfx.Font
ui *ui.Context
tone *audio.Sound
click *audio.Sound
pad *audio.Voice
sources []source
music *audio.Music
stream *audio.Voice
capture *audio.Capture
micBuf []float32
micErr string
micPeak float32
reverb float32
room float32
cutoff float32
pitch float32
occlusion float32
doppler float32
binaural bool
shotDone bool
}
Init: sounds, voices and the stream
ctx.Audio is the mixer. SetMaxVoices(12) is small on purpose: the
burst button plays forty voices, and when the mixer is full a new voice
takes the place of the quietest voice of the lowest priority no higher
than its own, or is refused. That is what a game meets when a fight gets
loud.
audio.Sine(freq, seconds, rate) synthesises samples, and m.NewSound
turns them into a sound that can be played any number of times.
m.Rate() is the device's sample rate, which the synthesis has to match.
m.Play starts a sound and returns the *audio.Voice. audio.PlayOptions
carries everything about that one playback: Loop, Volume, LowPass
in hertz, Reverb as the send level into the shared reverb, FadeIn in
seconds, and Priority, which decides what survives when the cap is
reached. A positional voice sets Positional with a MinDistance, the
radius inside which it is at full volume, and a MaxDistance, beyond
which it is silent.
SetDoppler scales the pitch shift from velocity and SetSpeedOfSound
sets what that shift is measured against. Both are in the same units as
the positions, which here are view units, so the speed of sound is 3000
of them per second to keep the orbit's shift musical.
The music is either an audio.Music opened from a file with
m.OpenMusicFile, or the arpeggio value at the bottom of this program.
Both are played with PlayStream, which pulls samples as the device
needs them. Ogg and MP3 decode incrementally; WAV is fully decoded when
OpenMusicFile opens it. The music owns its source file; ctx.Cleanup
registers the decoder and capture cleanup as soon as each opens.
m.OpenCapture opens the default input device. Its error is kept
and shown rather than returned, so a machine with no microphone still runs
the rest. The buffer is a tenth of a second at the capture rate, which
is what the update drains into.
func (g *game) Init(ctx *engine.Context) error {
var err error
if g.font, err = ctx.Gfx.NewFont(goregular.TTF, 15, gfx.FontOptions{}); err != nil {
return err
}
g.ui = ui.New(ctx.Gfx, ui.DarkTheme(g.font))
m := ctx.Audio
m.SetMaxVoices(12) // small on purpose, so the burst button shows stealing
if g.tone, err = m.NewSound(audio.Sine(440, 0.3, m.Rate())); err != nil {
return err
}
if g.click, err = m.NewSound(audio.Sine(1200, 0.05, m.Rate())); err != nil {
return err
}
pad, err := m.NewSound(audio.Sine(110, 2, m.Rate()))
if err != nil {
return err
}
g.reverb, g.room, g.cutoff, g.pitch = 0.3, 0.6, 4000, 1
m.SetReverb(audio.ReverbSettings{RoomSize: g.room, Wet: g.reverb})
// Doppler in pixels: a high speed of sound keeps the orbit's shift
// to a semitone or so at full factor.
g.doppler = 1
m.SetDoppler(g.doppler)
m.SetSpeedOfSound(3000)
// A looping pad the sliders act on.
g.pad = m.Play(pad, audio.PlayOptions{Loop: true, Volume: 0.35, LowPass: g.cutoff, Reverb: 1, FadeIn: 1.5, Priority: 10})
// Three orbiting positional sources at different pitches.
for i, f := range []float64{330, 495, 660} {
snd, err := m.NewSound(audio.Sine(f, 1, m.Rate()))
if err != nil {
return err
}
v := m.Play(snd, audio.PlayOptions{Loop: true, Volume: 0.3, Positional: true, MinDistance: 60, MaxDistance: 500, Priority: 10})
g.sources = append(g.sources, source{voice: v, speed: 0.4 + 0.3*float32(i), dist: 120 + 90*float32(i),
color: gfx.RGB(uint8(255-80*i), uint8(120+60*i), uint8(80*i+60))})
}
// Music: a file if given, otherwise a synthesised arpeggio stream.
if g.musicPath != "" {
if g.music, err = m.OpenMusicFile(g.musicPath, true); err != nil {
return err
}
ctx.Cleanup(g.music.Close)
g.stream = m.PlayStream(g.music, audio.PlayOptions{Volume: 0.5, Priority: 20})
} else {
g.stream = m.PlayStream(&arpeggio{rate: m.Rate()}, audio.PlayOptions{Volume: 0.18, Reverb: 0.6, Priority: 20})
}
// -mic records from the default input. Nothing is played back; the
// samples are read every update so the ring does not fill, and the
// meter reads the level. A run without -mic never opens the device,
// and a headless run has none to open.
if g.mic {
g.capture, err = m.OpenCapture(audio.CaptureOptions{})
if err != nil {
g.micErr = err.Error()
} else {
ctx.Cleanup(func() { g.capture.Close() })
g.micBuf = make([]float32, g.capture.Rate()/10)
}
}
return nil
}
Cleanup
ctx.Cleanup closes capture and music on exit, including initialization
failure. Music cleanup joins decoding before closing the owned file.
The engine releases voices and the font with their owning services.
Update: the listener, the sources and the microphone
SetListener2D places the listener, which is what panning and distance
are measured from. With -zone, SetReverbZones replaces the list of
reverb zones: a centre, a radius, a fade width over which the zone's
settings blend in, and the settings themselves. The listener follows the
mouse, so walking into the zone changes the room.
Each source is placed on its circle from ctx.Time and its own speed.
SetVelocity is what Doppler reads; the value is the orbit's tangent,
the derivative of the position, so a source moving towards the listener
rises in pitch. Giving it a position without a velocity is legal and
means no shift.
The capture is drained every update. Read copies what the device has
recorded into the buffer and returns how much, so looping until it
returns zero keeps the ring from filling; nothing is played back here.
Level is the RMS amplitude of the most recent capture block; the example
applies a decay to keep its meter readable.
func (g *game) Update(ctx *engine.Context) error {
if ctx.Input.KeyPressed(input.KeyEscape) || (g.seconds > 0 && ctx.Time >= g.seconds) {
ctx.Quit()
}
if g.shot != "" && !g.shotDone && (g.seconds == 0 || ctx.Time >= g.seconds/2) {
ctx.Screenshot(g.shot)
g.shotDone = true
}
// The listener sits at the window centre; sources circle it. With
// -zone, a large hall covers the left half of the window and the
// listener is moved with the mouse so it can walk in and out.
cx, cy := ctx.Width/2, ctx.Height/2
lx, ly := cx, cy
if g.zone {
lx, ly = ctx.Input.Mouse()
ctx.Audio.SetReverbZones([]audio.ReverbZone{{
Center: lin.V3(cx/2, cy, 0), Radius: cx / 2, Fade: cx / 8,
Settings: audio.ReverbSettings{RoomSize: 0.95, Damping: 0.2, Wet: 0.8},
}})
}
ctx.Audio.SetListener2D(lx, ly)
for i := range g.sources {
s := &g.sources[i]
a := float64(float32(ctx.Time) * s.speed)
s.pos = lin.V3(cx+s.dist*float32(math.Cos(a)), cy+s.dist*float32(math.Sin(a)), 0)
s.voice.SetPosition(s.pos)
// The orbit's tangent, in pixels per second, drives Doppler.
v := s.dist * s.speed
s.voice.SetVelocity(lin.V3(-v*float32(math.Sin(a)), v*float32(math.Cos(a)), 0))
}
if g.capture != nil {
// Drain what the device recorded since the last update, so the
// ring never fills, and hold the peak for a readable meter.
for g.capture.Read(g.micBuf) > 0 {
}
g.micPeak = max(g.capture.Level(), g.micPeak-float32(ctx.Delta))
}
return nil
}
Draw: the scene
The sources are drawn as squares with translucent rings around them.
Colours are gfx.Color in linear space; setting c.A = 0.25 makes the
ring translucent, and the 2D stream premultiplies it on the way to the
GPU. ctx.Audio.Listener() reads the listener back rather than the
program remembering where it put it.
func (g *game) Draw(ctx *engine.Context) error {
gr := ctx.Gfx
cx := ctx.Width / 2
for _, s := range g.sources {
for r := float32(3); r <= 9; r += 3 { // rings fade with distance
c := s.color
c.A = 0.25
gr.FillRect(s.pos.X-r*3, s.pos.Y-r*3, r*6, r*6, c)
}
gr.FillRect(s.pos.X-6, s.pos.Y-6, 12, 12, s.color)
}
l := ctx.Audio.Listener().Position
if g.zone {
gr.FillRect(0, 0, cx, ctx.Height, gfx.RGBA(80, 90, 160, 40)) // the hall
r := ctx.Audio.Reverb()
gr.DrawText(g.font, fmt.Sprintf("hall: wet %.2f room %.2f (move the mouse)", r.Wet, r.RoomSize), 16, ctx.Height-30, gfx.RGB(200, 200, 210))
}
gr.FillRect(l.X-8, l.Y-8, 16, 16, gfx.RGB(240, 240, 250))
gr.DrawText(g.font, "listener", l.X-24, l.Y+12, gfx.RGB(200, 200, 210))
Draw: the panel
The panel is one column of sliders and rows of buttons, rebuilt every
frame. Each slider returns whether it moved, so the mixer call happens
only on the frames where something changed. u.Row(2, ...) lays the next
two widgets out side by side.
The calls show what a voice and the mixer each own. SetLowPass,
SetOcclusion and FadeTo are on the voice, so they affect one
playback; SetReverb, SetDoppler and SetSpatial are on the mixer, so
they affect everything. Pitch and Pan are set when a voice starts, in
the play options. ctx.Audio.Playing() is the live voice count, which
the burst button pushes against the cap.
SetSpatial(audio.SpatialSettings{Binaural: ...}) swaps the pan law for
a head model with an interaural delay and a head shadow, which is worth
turning on to compare the headphone spatial cues with ordinary panning.
The meter is drawn on a decibel scale rather than on the raw amplitude,
because a linear meter spends most of its length on sounds nobody can
hear. Dropped counts the samples the ring lost, which is what a game
watches to know its drain loop is keeping up.
u := g.ui
u.Begin(ctx.Input, func() {
u.Panel("Audio", ui.Rect{X: 16, Y: 16, W: 300, H: 560}, func() {
u.Label(fmt.Sprintf("%d voices playing (cap 12)", ctx.Audio.Playing()))
if u.Slider("Reverb wet", &g.reverb, 0, 1) || u.Slider("Room size", &g.room, 0, 1) {
ctx.Audio.SetReverb(audio.ReverbSettings{RoomSize: g.room, Wet: g.reverb})
}
if u.Slider("Pad low-pass Hz", &g.cutoff, 200, 8000) {
g.pad.SetLowPass(g.cutoff)
}
if u.Slider("Orbit occlusion", &g.occlusion, 0, 1) {
for _, s := range g.sources {
s.voice.SetOcclusion(g.occlusion)
}
}
if u.Slider("Doppler factor", &g.doppler, 0, 3) {
ctx.Audio.SetDoppler(g.doppler)
}
if u.Checkbox("Binaural (headphones)", &g.binaural) {
ctx.Audio.SetSpatial(audio.SpatialSettings{Binaural: g.binaural})
}
u.Slider("Click pitch", &g.pitch, 0.5, 2)
u.Row(2, func() {
if u.Button("Click") {
ctx.Audio.Play(g.click, audio.PlayOptions{Volume: 0.6, Pitch: g.pitch, Reverb: g.reverb})
}
if u.Button("Burst 40") {
for i := range 40 {
// Low-priority voices; the cap makes the mixer steal the quietest.
ctx.Audio.Play(g.tone, audio.PlayOptions{Volume: 0.2, Pitch: 0.8 + 0.02*float32(i), Pan: float32(i%5-2) / 2})
}
}
})
u.Row(2, func() {
if u.Button("Fade pad out") {
g.pad.FadeTo(0, 1.5)
}
if u.Button("Fade pad in") {
g.pad.FadeTo(0.35, 1.5)
}
})
u.Row(2, func() {
if u.Button("Pause music") {
g.stream.SetPaused(true)
}
if u.Button("Resume music") {
g.stream.SetPaused(false)
}
})
if g.music != nil {
u.Label(fmt.Sprintf("Streaming %s, %.1f s buffered", g.musicPath, g.music.Buffered()))
} else {
u.Label("Music is a synthesised Stream; pass -music file.ogg to stream a file.")
}
switch {
case g.capture != nil:
// A meter on a decibel scale, silence at -60 dB.
db := float32(0)
if g.micPeak > 0 {
db = max(0, (20*float32(math.Log10(float64(g.micPeak)))+60)/60)
}
u.Progress(fmt.Sprintf("Mic %.3f at %d Hz, %d dropped", g.capture.Level(), g.capture.Rate(), g.capture.Dropped()), db)
case g.micErr != "":
u.Label("Microphone: " + g.micErr)
}
})
})
return nil
}
A Stream of synthesised music
arpeggio implements the mixer's stream interface: Read fills a buffer
of interleaved stereo float samples and returns the number of frames
written. It is called from the audio thread, so it must not allocate,
block or touch the graphics device. Everything it needs is state on the
value: the sample rate, the elapsed time and the oscillator's phase.
Keeping the phase rather than recomputing it from the time is what prevents a click at every buffer boundary.
// arpeggio is a Stream: it synthesises a slow chord arpeggio on demand,
// which is how procedural music or a custom decoder plugs into the mixer.
type arpeggio struct {
rate int
t float64
phase float64
}
var notes = []float64{261.63, 329.63, 392.00, 523.25, 392.00, 329.63}
func (a *arpeggio) Read(out []float32) int {
frames := len(out) / 2
for i := range frames {
step := int(a.t*3) % len(notes)
f := notes[step]
env := 1 - math.Mod(a.t*3, 1) // decays over each note
a.phase += 2 * math.Pi * f / float64(a.rate)
s := float32(math.Sin(a.phase)*0.6+math.Sin(2*a.phase)*0.25) * float32(env)
out[i*2], out[i*2+1] = s, s
a.t += 1 / float64(a.rate)
}
return frames
}
main
func main() {
seconds := flag.Float64("seconds", 0, "exit after this many seconds")
shot := flag.String("shot", "", "write a screenshot to this PNG")
music := flag.String("music", "", "Ogg, MP3 or WAV file to stream")
zone := flag.Bool("zone", false, "put a reverb zone over the left half and move the listener with the mouse")
mic := flag.Bool("mic", false, "record from the default microphone and show a level meter")
flag.Parse()
err := engine.Run(engine.Config{Title: "Bunyip audio", Width: 900, Height: 600, Resizable: true},
&game{seconds: *seconds, shot: *shot, musicPath: *music, zone: *zone, mic: *mic})
if err != nil {
fmt.Fprintln(os.Stderr, "audio:", err)
os.Exit(1)
}
}
What to try
- Drag Doppler to 3 in the panel and listen to the orbiting sources bend as they pass.
- Raise
SetMaxVoicesinInitto 64 and press Burst 40: nothing is stolen any more. - Give the burst voices a
Priorityabove the pad's inDrawand watch which sound survives instead. - Change the notes in
notesor the harmonics inarpeggio.Readand hear the stream change without restarting anything. - Pass
-zoneand move the mouse across the boundary to hear the reverb zone blend over the fade width set inUpdate. - Pass
-micwith headphones on, and play the captured buffer back through aStreaminUpdateinstead of discarding it.
