Example examples/roguelike
Roguelike
This is the engine's turn-based mode in a complete small game. It generates rooms joined by corridors, places a player and some goblins, computes what the player can see, moves the monsters when the player moves, and prints a message log under the map. Nothing happens between turns in the dungeon. The engine loop can block in the operating system between events instead of continually updating and redrawing an idle game.
Turn-based mode is a single field, Config.TurnBased, and its effect
runs through everything else. Update runs when an event arrives rather
than at a fixed rate, Draw follows it, and a game that needs a frame
without an event asks for one with ctx.RequestRedraw(). The rest is
gfx text drawing and input key
edges. The guides are The window for the loop
and 2D graphics for the drawing.
The program is in two files. main.go is the game type and the
presentation; dungeon.go is the map, the generator, the monsters and
the field of view, with no reference to the engine except colours.
Run it with:

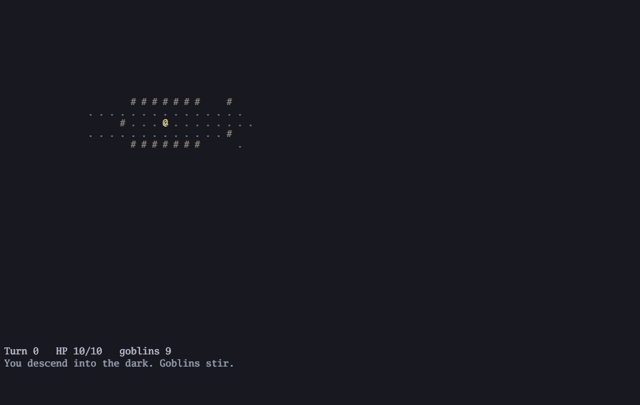

go run ./examples/roguelike -seconds 3 -shot out.png
The flags are -seconds N and -shot file.png. Move with the arrow
keys, HJKL and YUBN, or the numpad; . or numpad 5 waits a turn;
Escape quits.
Constants and the game type
The map is 60 by 32 cells drawn at 20 units each, and the window is
sized from those constants in main, with 120 units left under the map
for the status line and the log.
game holds the font, the dungeon, the turn counter and the last four
log messages.
const (
mapW, mapH = 60, 32
cellSize = 20
)
type game struct {
seconds float64
shot string
font *gfx.Font
dungeon *dungeon
turn int
log []string
shotDone bool
}
Init and the log
The font is Go Mono, because a fixed-width face makes a grid of glyphs
line up. FontOptions.Ranges asks for two extra Unicode blocks, the box
drawing and block element characters, to be included in the atlas, which
is what a game that draws walls as box characters needs.
The dungeon is generated from a fixed seed, so every run is the same
map. say appends to the log and keeps the last four lines.
func (g *game) Init(ctx *engine.Context) error {
var err error
g.font, err = ctx.Gfx.NewFont(gomono.TTF, 18, gfx.FontOptions{Ranges: [][2]rune{{0x2500, 0x257F}, {0x2580, 0x259F}}})
if err != nil {
return err
}
g.dungeon = newDungeon(rand.New(rand.NewPCG(7, 11)))
g.say("You descend into the dark. Goblins stir.")
return nil
}
func (g *game) Shutdown(ctx *engine.Context) { g.font.Destroy() }
func (g *game) say(msg string) {
g.log = append(g.log, msg)
if len(g.log) > 4 {
g.log = g.log[1:]
}
}
The movement table
Every movement key maps to a step. One table covers the arrow keys, the
hjkl and yubn sets and the numpad, so the input code below is one
loop rather than twenty cases. input.Key values name physical
positions on the keyboard, so the numpad entries are distinct from the
digits above the letters.
var moves = map[input.Key][2]int{
input.KeyLeft: {-1, 0}, input.KeyRight: {1, 0}, input.KeyUp: {0, -1}, input.KeyDown: {0, 1},
input.KeyH: {-1, 0}, input.KeyL: {1, 0}, input.KeyK: {0, -1}, input.KeyJ: {0, 1},
input.KeyY: {-1, -1}, input.KeyU: {1, -1}, input.KeyB: {-1, 1}, input.KeyN: {1, 1},
input.KeyKeypad4: {-1, 0}, input.KeyKeypad6: {1, 0}, input.KeyKeypad8: {0, -1}, input.KeyKeypad2: {0, 1},
input.KeyKeypad7: {-1, -1}, input.KeyKeypad9: {1, -1}, input.KeyKeypad1: {-1, 1}, input.KeyKeypad3: {1, 1},
}
Update: one keypress, one turn
Update runs when an event arrives. Each movement key is tested with
KeyPressed, which includes OS key-repeat events, so holding a key can
advance further turns at the platform's repeat rate. The loop breaks
after the first matching movement key.
ctx.RequestRedraw() asks for another pass even though nothing has
happened. It is only used when -seconds is set: without it the program
would sleep in the operating system and never reach the deadline check,
so an unattended run would never exit. A real turn-based game leaves it
out, and only calls it when an animation is running.
func (g *game) Update(ctx *engine.Context) error {
in := ctx.Input
if in.KeyPressed(input.KeyEscape) || (g.seconds > 0 && ctx.Time >= g.seconds) {
ctx.Quit()
}
if g.seconds > 0 {
ctx.RequestRedraw() // keep the loop ticking so the timeout can fire
}
if g.shot != "" && !g.shotDone && (g.seconds == 0 || ctx.Time >= g.seconds/2) {
ctx.Screenshot(g.shot)
g.shotDone = true
}
for key, d := range moves {
if in.KeyPressed(key) {
g.takeTurn(ctx, d[0], d[1])
break
}
}
if in.KeyPressed(input.KeyPeriod) || in.KeyPressed(input.KeyKeypad5) {
g.takeTurn(ctx, 0, 0)
}
return nil
}
A turn
A turn is the whole world moving once: the player acts, every monster acts, and the field of view is recomputed. Doing it in one function is what makes a turn-based game simple to reason about, since nothing happens between two of these calls.
ctx.Log is the engine's structured logger, and the line here records
the turn number, the player's position and hit points, which is a
readable trace of a session.
func (g *game) takeTurn(ctx *engine.Context, dx, dy int) {
d := g.dungeon
if d.player.hp <= 0 {
return
}
g.turn++
if msg := d.movePlayer(dx, dy); msg != "" {
g.say(msg)
}
for _, msg := range d.monstersAct() {
g.say(msg)
}
d.computeFOV()
ctx.Log.Info("roguelike: turn", "n", g.turn, "player", fmt.Sprintf("%d,%d", d.player.x, d.player.y), "hp", d.player.hp)
}
Draw: glyphs on a grid
Every visible or remembered tile draws its glyph. A tile that has been seen but is not currently visible draws in a dim grey, which is the usual roguelike memory: the map stays on screen, the contents do not. Monsters are only drawn where the player can see them.
The HUD is below the map, using Font.LineHeight to space the log
lines, so the layout follows the font rather than a hard-coded number.
The death overlay is a translucent rectangle over the whole view
followed by a line of text.
func (g *game) Draw(ctx *engine.Context) error {
gr := ctx.Gfx
d := g.dungeon
for y := range mapH {
for x := range mapW {
t := d.tiles[y][x]
if !t.seen {
continue
}
ch, col := t.glyph()
if !t.visible {
col = gfx.RGB(70, 70, 90)
}
g.cell(gr, x, y, ch, col)
}
}
for _, m := range d.monsters {
if m.hp > 0 && d.tiles[m.y][m.x].visible {
g.cell(gr, m.x, m.y, "g", gfx.RGB(120, 220, 90))
}
}
g.cell(gr, d.player.x, d.player.y, "@", gfx.RGB(255, 240, 160))
// HUD and log below the map.
top := float32(mapH*cellSize + 8)
gr.DrawText(g.font, fmt.Sprintf("Turn %d HP %d/%d goblins %d", g.turn, d.player.hp, d.player.maxHP, d.alive()), 8, top, gfx.RGB(200, 200, 220))
for i, msg := range g.log {
gr.DrawText(g.font, msg, 8, top+float32(i+1)*(g.font.LineHeight+2), gfx.RGB(160, 170, 190))
}
if d.player.hp <= 0 {
gr.FillRect(0, 0, ctx.Width, ctx.Height, gfx.RGBA(0, 0, 0, 150))
gr.DrawText(g.font, "You died. Escape to quit.", ctx.Width/2-120, ctx.Height/2, gfx.RGB(255, 80, 80))
}
return nil
}
func (g *game) cell(gr *gfx.Graphics, x, y int, s string, c gfx.Color) {
w, _ := g.font.Measure(s, gfx.TextOptions{})
gr.DrawText(g.font, s, float32(x*cellSize)+(cellSize-w)/2, float32(y*cellSize), c)
}
cell measures each glyph and centres it in its 20 unit cell, so the
map lines up even where a glyph is narrower than the cell.
main
TurnBased: true is the whole difference from the other examples. The
window height leaves 120 units under the map for the status line and the
log.
func main() {
seconds := flag.Float64("seconds", 0, "exit after this many seconds")
shot := flag.String("shot", "", "write a screenshot to this PNG")
flag.Parse()
err := engine.Run(engine.Config{
Title: "Bunyip roguelike", Width: mapW * cellSize, Height: mapH*cellSize + 120,
TurnBased: true,
}, &game{seconds: *seconds, shot: *shot})
if err != nil {
fmt.Fprintln(os.Stderr, "roguelike:", err)
os.Exit(1)
}
}
The dungeon: tiles and actors
The second file has no engine dependency beyond gfx.Color. A tile is
a wall flag plus two visibility flags: seen is whether it has ever
been visible and visible is whether it is visible now. glyph maps a
tile to the character and colour it draws with, which is the only
presentation decision in this file.
An actor is a position and hit points, used for both the player and the monsters. The dungeon owns a fixed-size tile array, the player by value, the monsters as pointers so they can be mutated through the slice, and the random source used to generate it.
package main
import (
"math/rand/v2"
"github.com/matjam/bunyip/gfx"
)
type tile struct {
wall bool
seen bool
visible bool
}
func (t tile) glyph() (string, gfx.Color) {
if t.wall {
return "#", gfx.RGB(150, 140, 130)
}
return ".", gfx.RGB(110, 110, 120)
}
type actor struct {
x, y int
hp, maxHP int
}
type dungeon struct {
tiles [mapH][mapW]tile
player actor
monsters []*actor
rng *rand.Rand
}
type room struct{ x, y, w, h int }
func (r room) center() (int, int) { return r.x + r.w/2, r.y + r.h/2 }
Generating the map
The generator is the classic one: fill everything with wall, then try forty random rooms, discarding any that leave the map or overlap one already placed, and join each accepted room to the previous one with two straight corridors in a random order, which gives an L-shaped passage. The player starts in the first room, and each later room has a two in three chance of a goblin.
// newDungeon carves random rooms joined by L-shaped corridors.
func newDungeon(rng *rand.Rand) *dungeon {
d := &dungeon{rng: rng}
for y := range mapH {
for x := range mapW {
d.tiles[y][x].wall = true
}
}
var rooms []room
for range 40 {
r := room{x: 1 + rng.IntN(mapW-12), y: 1 + rng.IntN(mapH-8), w: 4 + rng.IntN(8), h: 3 + rng.IntN(5)}
if r.x+r.w >= mapW-1 || r.y+r.h >= mapH-1 {
continue
}
overlaps := false
for _, o := range rooms {
if r.x <= o.x+o.w && o.x <= r.x+r.w && r.y <= o.y+o.h && o.y <= r.y+r.h {
overlaps = true
break
}
}
if overlaps {
continue
}
d.carve(r)
if len(rooms) > 0 {
px, py := rooms[len(rooms)-1].center()
cx, cy := r.center()
if rng.IntN(2) == 0 {
d.corridorH(px, cx, py)
d.corridorV(py, cy, cx)
} else {
d.corridorV(py, cy, px)
d.corridorH(px, cx, cy)
}
}
rooms = append(rooms, r)
}
px, py := rooms[0].center()
d.player = actor{x: px, y: py, hp: 10, maxHP: 10}
for _, r := range rooms[1:] {
if rng.IntN(3) > 0 {
cx, cy := r.center()
d.monsters = append(d.monsters, &actor{x: cx, y: cy, hp: 3, maxHP: 3})
}
}
d.computeFOV()
return d
}
func (d *dungeon) carve(r room) {
for y := r.y; y < r.y+r.h; y++ {
for x := r.x; x < r.x+r.w; x++ {
d.tiles[y][x].wall = false
}
}
}
func (d *dungeon) corridorH(x1, x2, y int) {
for x := min(x1, x2); x <= max(x1, x2); x++ {
d.tiles[y][x].wall = false
}
}
func (d *dungeon) corridorV(y1, y2, x int) {
for y := min(y1, y2); y <= max(y1, y2); y++ {
d.tiles[y][x].wall = false
}
}
func (d *dungeon) inBounds(x, y int) bool { return x >= 0 && y >= 0 && x < mapW && y < mapH }
func (d *dungeon) monsterAt(x, y int) *actor {
for _, m := range d.monsters {
if m.hp > 0 && m.x == x && m.y == y {
return m
}
}
return nil
}
The overlap test compares the rooms with one cell of slack on each side, so accepted rooms always have a wall between them.
Acting
The player's move is the standard roguelike one: a wall stops the move
with no message, but takeTurn still advances the turn and the monsters.
A monster in the way is attacked
instead of being walked into, and otherwise the player moves. Returning
the message rather than logging it keeps this file free of presentation.
Monsters act only where the player can see them, which is a simple way to keep the far side of the map quiet. A goblin adjacent to the player attacks; otherwise it tries the diagonal step towards the player first and then the two straight steps, so it slides along a wall instead of sticking to it.
func (d *dungeon) movePlayer(dx, dy int) string {
nx, ny := d.player.x+dx, d.player.y+dy
if !d.inBounds(nx, ny) || d.tiles[ny][nx].wall {
return ""
}
if m := d.monsterAt(nx, ny); m != nil {
m.hp -= 2
if m.hp <= 0 {
return "You slay the goblin."
}
return "You hit the goblin."
}
d.player.x, d.player.y = nx, ny
return ""
}
// monstersAct moves each visible goblin one step toward the player, or
// attacks when adjacent.
func (d *dungeon) monstersAct() []string {
var msgs []string
for _, m := range d.monsters {
if m.hp <= 0 || !d.tiles[m.y][m.x].visible {
continue
}
dx, dy := sign(d.player.x-m.x), sign(d.player.y-m.y)
if m.x+dx == d.player.x && m.y+dy == d.player.y {
d.player.hp--
msgs = append(msgs, "The goblin bites you!")
continue
}
for _, step := range [][2]int{{dx, dy}, {dx, 0}, {0, dy}} {
nx, ny := m.x+step[0], m.y+step[1]
if (step[0] != 0 || step[1] != 0) && d.inBounds(nx, ny) && !d.tiles[ny][nx].wall && d.monsterAt(nx, ny) == nil && !(nx == d.player.x && ny == d.player.y) {
m.x, m.y = nx, ny
break
}
}
}
return msgs
}
func (d *dungeon) alive() int {
n := 0
for _, m := range d.monsters {
if m.hp > 0 {
n++
}
}
return n
}
Field of view
Visibility is recomputed from scratch each turn: clear every tile, then
for each cell within a radius of eight, keep it if a straight line from
the player reaches it without crossing a wall. A tile that is visible is
also marked seen, which is what the dim rendering in Draw uses.
lineClear is Bresenham's line walked one cell at a time. A wall
strictly between the endpoints blocks the line, but a wall at either end
does not, which is what makes the walls of a lit room visible rather
than a room of floor tiles surrounded by darkness.
// computeFOV marks tiles within radius 8 that a straight line reaches.
func (d *dungeon) computeFOV() {
const radius = 8
for y := range mapH {
for x := range mapW {
d.tiles[y][x].visible = false
}
}
px, py := d.player.x, d.player.y
for y := py - radius; y <= py+radius; y++ {
for x := px - radius; x <= px+radius; x++ {
if !d.inBounds(x, y) || (x-px)*(x-px)+(y-py)*(y-py) > radius*radius {
continue
}
if d.lineClear(px, py, x, y) {
d.tiles[y][x].visible = true
d.tiles[y][x].seen = true
}
}
}
}
// lineClear walks a Bresenham line and reports whether no wall sits
// strictly between the endpoints.
func (d *dungeon) lineClear(x0, y0, x1, y1 int) bool {
dx, dy := abs(x1-x0), -abs(y1-y0)
sx, sy := sign(x1-x0), sign(y1-y0)
err := dx + dy
x, y := x0, y0
for {
if x == x1 && y == y1 {
return true
}
if (x != x0 || y != y0) && d.tiles[y][x].wall {
return false
}
e2 := 2 * err
if e2 >= dy {
err += dy
x += sx
}
if e2 <= dx {
err += dx
y += sy
}
}
}
func sign(v int) int {
switch {
case v < 0:
return -1
case v > 0:
return 1
}
return 0
}
func abs(v int) int {
if v < 0 {
return -v
}
return v
}
Casting a line to every cell in the radius is more work than a shadow casting algorithm needs, but at 17 by 17 cells per turn it is free, and it is short enough to read.
What to try
- Give the goblins their own field of view in
monstersActinstead of using the player's, so they keep chasing after the player steps out of sight. - Add an item type to
dungeonand place one per room innewDungeon, then pick it up inmovePlayer. - Replace the box glyphs with tiles: draw a sprite per cell in
Drawand keep the same map code. - Widen the field of view radius in
computeFOV, or make it depend on a light source the player carries. - Remove the
RequestRedrawcall inUpdateand confirm that the game still plays but no longer honours-seconds, which is what turn-based mode means.
